PowerPaul® Cub Lite 12.8v 175Ah Lithium Battery

PowerPaul® Cub Lite 12.8v 175Ah Lithium Battery

Regular price $2,334.35 NZD
Regular price Sale price $2,334.35 NZD
Sale Sold out
Taxes included.

SKU:PP-CL-175AH

The PowerPaul® Cub Lite is perfect for systems needing high current but lower storage capacity, such as 4WDs, canopy systems, and small caravans. This compact battery can power a 3000W inverter at full load (250A continuous). It features CALB brand cells and a Heltec Hardware BMS for simplicity. Despite its compact size, similar to 100-135Ah batteries, it offers 175Ah of capacity.

Specifications:

  • Rated Capacity: 175Ah
  • Battery Management System (BMS): Heltec Hardware BMS

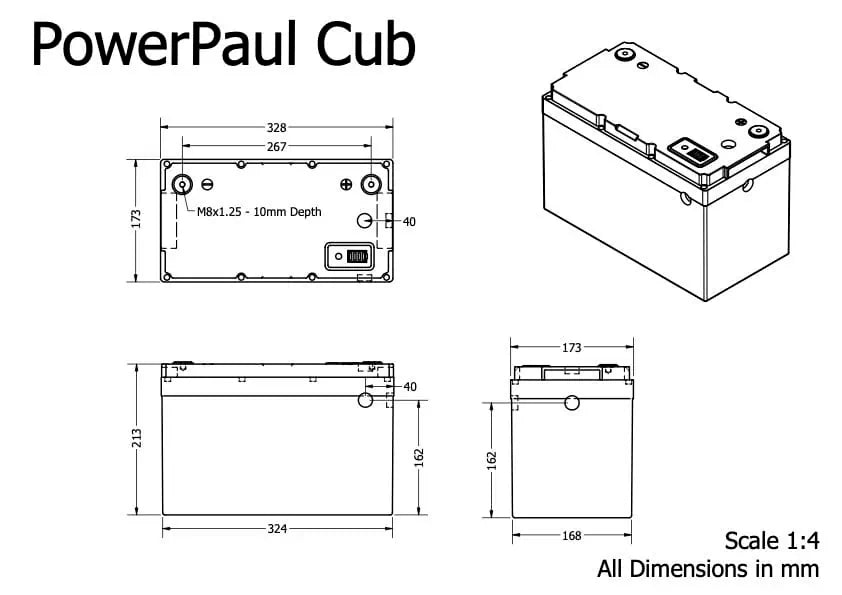

  • Dimensions: 172mm (W) x 328mm (L) x 212mm (H)
  • Weight: Approximately 15kg
  • Nominal Voltage: 12.8V
  • Cycle Life: Over 2000 cycles at 80% depth of discharge (expected lifespan of more than 10 years)
  • BMS Current:
    • Continuous Discharge: 250A
    • Peak Discharge (1 sec): 800A
    • Continuous Charge: 125A
    • Peak Charge: 150A
    • Note: Direct alternator charging is not supported
  • Overcurrent Protection: Not included
  • Cell Balancing: 5A Active Balancer installed
  • Battery Connections:
    • Parallel connection with identical batteries is allowed (ensure same voltage first)
    • Series connection is not allowed
  • Warranty: 6-year warranty against manufacturing defects or failure
